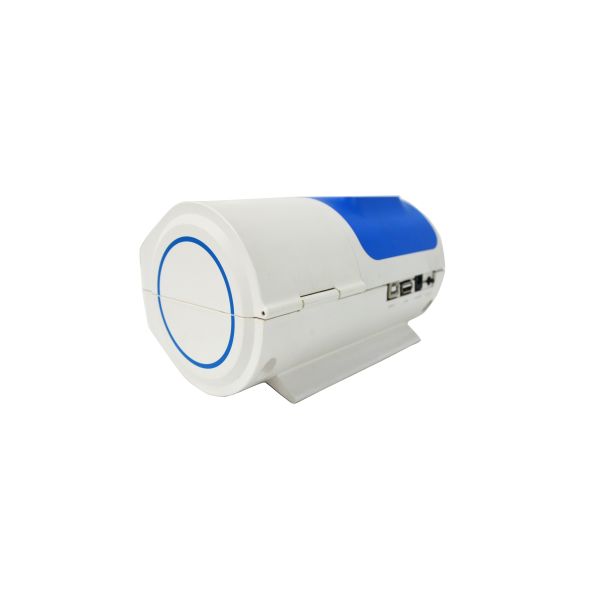

HbA1c Analyzer POCT HbA1c Detection Analyzer LD-100 Fully Automatic Hematology Detection Analyzer

Intended Use

Labnovation HbA1c Analyzer LD-100 POCT Analyzer is intended for the percent determination of hemoglobin A1c (HbA1c) in human whole blood which is a semi-automatic instrument used to analyze glycated hemoglobin. LD-100 is small and light, it can be used to detect of HbA1c in medical units at all levels. Fually Automatic system can help the test half work with double results.

Specifications

PRINCIPLE

• Uses the (borate affinity) fluorescent immunoturbidimetry
• Push a mixture containing a fluorescent borate conjugate into an integrated test cup and mix to dissolve sufficiently.
• The blood samples in the sample collector are then pushed into the buffer and mixed to release the hemoglobin from the red blood cells.
• The total concentration of hemoglobin depends on the initial reduced fluorescence signal.
• Fluorescent borate conjugates bind to glycosylated hemoglobin, and glycosylated hemoglobin is determined by detecting the decrease of fluorescent active ingredients.
• The percentage of glycosylated hemoglobin in total hemoglobin can be determined.

Feature

• One-Step Testing, Fully Automatic
• Protable, easy to carry
• Fast test speed, WIthin 3 minutes
• Battery Integrated
• Cv<3%, Excellent Correlation With HPLC
• RFID For Batch Management
• Color touch screen
• External printer (Blue-tooth)
• USB Port, LIS Support

Reliable

Use Step

• Place cartridge in analyzer
• Push bead into reagents
• Insert sample into cartridge

Performance Parameters

• Accuracy: Is tested with the reference material as samples, and the relative deviation of the determination results of the analyzer should be within the range of ±8%.
• Precision:Samples with a concentration of 4.0%-6.5% are detected, sample coefficient of variation (CV) of the test results is not more than 3%.
• Linearity:In the range of 4%-16% of HbA1c, the linear correlation coefficientrof the test results should be no less than 0.9900.
• Stability:Within 8 hours after the instrument is turned on and stable, the relative deviation of the test results is not more than ±3%.
• Functions of the analyzer:The function of report output in English; Abnormal alarm function.

Certificated

Labnovation Technologies, Inc. is an original manufacturer established in Shenzhen, China since 2001. We are dedicated in developing and manufacturing IVD instruments and reagents including HbA1c analyzer and reagents, rapid test reader & reagents, hematology reagents, clinical chemistry reagents, electrolyte reagents, wash solution and urine test reagents.


Labnovation products are developed in house, tested extensively in clinics and passed strict quality controls. All of our products are CE marked and approved by SFDA. In the past 15 years, our products have been exported to 110 different countries and used in 8000 hospitals worldwide. We provide both ready-to-use final products and bulk OEM reagents, including ready-to-use reagents, concentrated, and powder.

With an investment of 10% of our annual sales into R&D, we release new products every years. We win more and more domestic and international cooperation by company reputation and products quality while we actively take part in fairs like MEDICA,AACC, ARBA HEALTH and so on through which we are well-known by the companies in this field.
