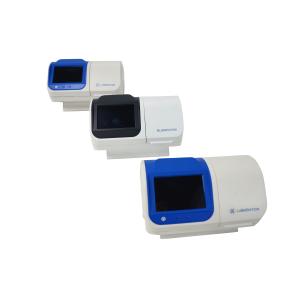

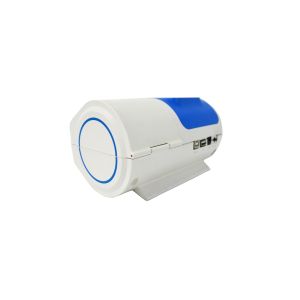

HbA1c Test Analyzer LD-100 Fully Automatic Testing Hematogy Analyzer Medical Use HbA1c Analyzer

Intended Use

This instrument is intended for the percent determination of hemoglobin A1c (HbA1c) in human whole blood. Testing processis very simple, touch screen for start testing by click. The LD-100 HbA1c Analyzer is a semi-automatic instrument used to analyze glycated hemoglobin. It just need small sample the can do the HbA1c tetsing, very esay operation and it is suitable for the detection of HbA1c in medical units at all levels.

Specifications

PRINCIPLE
HbA1c Analyzer uses the (borate affinity) fluorescent immunoturbidimetry. Push a mixture containing a fluorescent borate conjugate into an integrated test cup and mix to dissolve sufficiently. The blood samples in the sample collector are then pushed into the buffer and mixed to release the hemoglobin from the red blood cells.

Performance Parameters

• Accuracy:The relative deviation of the determination results of the analyzer should be within the range of ±8%.
• Precision:Samples with a concentration of 4.0%-6.5% are detected, and the sample coefficient of variation (CV) of the test results is not more than 3%.
• Linearity:In the range of 4%-16% of HbA1c, the linear correlation coefficient r of the test results should be no less than 0.9900.
• Stability:Within 8 hours after the instrument is turned on and stable, the same normal sample is tested, and the relative deviation of the test results is not more than ±3%.

Feature

• Boronate Affinity
• Battery Integrated
• Portable, Compact
• Cv<3%, Excellent Correlation With HPLC
• RFID For Batch Management
• External printer (Blue-tooth)
• USB Port, LIS Support
• Operating mode: Continuous
• Easy for use

Reliable

Use Step

• Place cartridge in analyzer
• Push bead into reagents
• Insert sample into cartridge

Certificated

Labnovation Technologies, Inc. is an original manufacturer established in Shenzhen, China since 2001. We are dedicated in developing and manufacturing IVD instruments and reagents including HbA1c analyzer and reagents, rapid test reader & reagents, hematology reagents, clinical chemistry reagents, electrolyte reagents, wash solution and urine test reagents.


Labnovation products are developed in house, tested extensively in clinics and passed strict quality controls. All of our products are CE marked and approved by SFDA. In the past 15 years, our products have been exported to 110 different countries and used in 8000 hospitals worldwide. We provide both ready-to-use final products and bulk OEM reagents, including ready-to-use reagents, concentrated, and powder.

With an investment of 10% of our annual sales into R&D, we release new products every years. We win more and more domestic and international cooperation by company reputation and products quality while we actively take part in fairs like MEDICA,AACC, ARBA HEALTH and so on through which we are well-known by the companies in this field.
