Chromatographic Column HPLC HbA1c Analyzer For HbA1c Test Fully Automatic

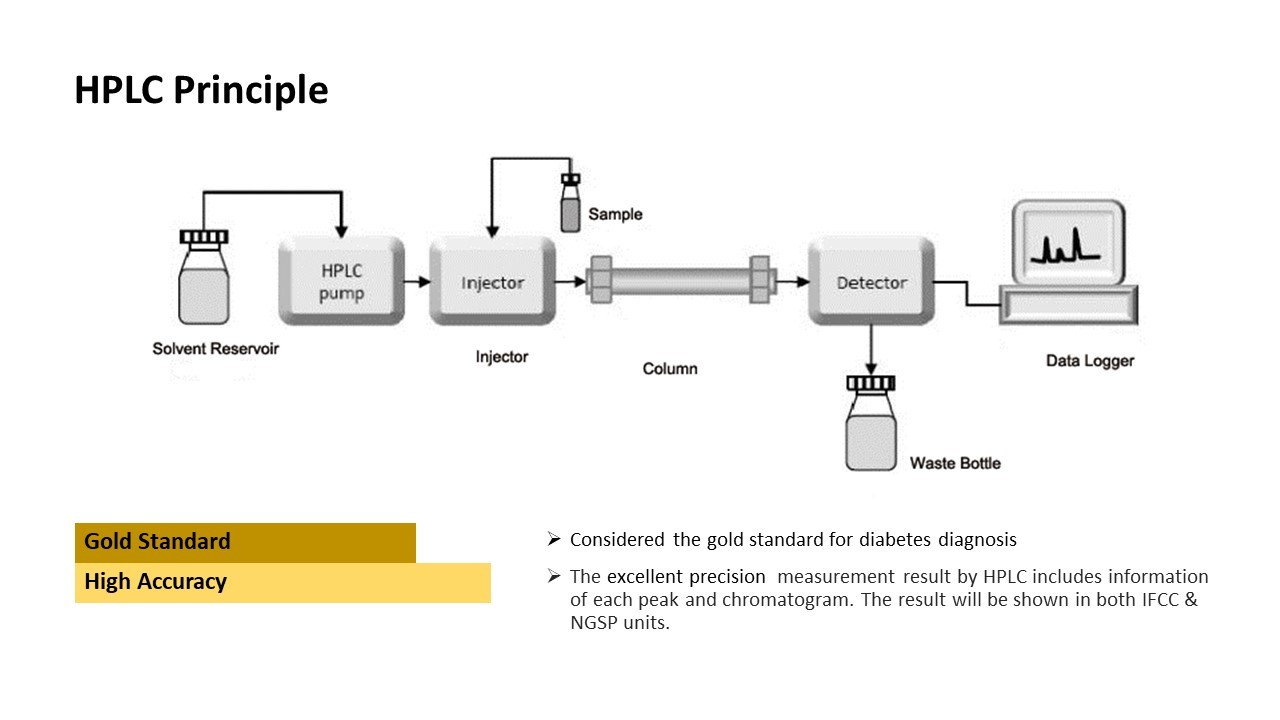

Using high performance liquid chromatography (HPLC), the stationary phase used is a weakly acidic cation exchanger.
Glycosylation of hemoglobin will result in the loss of cations on the surface of hemoglobin without being charged, and non-glycosylated hemoglobin has a positive charge. According to the different charged properties of hemoglobin, eluents with different pH values and ionic strengths are used sequentially, and several hemoglobin components including HbA1c are separated by high performance liquid chromatography. Each component is detected by a single-wavelength colorimeter, and the detected data is processed by a computer to calculate the percentage content of HbA1c in the total hemoglobin.

Specification

---

Instrument	Manufacturer	Lanovation
	Manufacture Location	China
	Model No	LD-560
Dection information	Principle Method	HPLC
	Detection Mode	Fast Mode, Variant Mode
	Detection Method	Single wavelengh colorimetry
	Wavelength	420nm
	Test time	90 Seconds
	Test Speed Throughtput	40 samples per hour
Sample information	Sample types	Whole blood or Pre-diluent sample
	Test Blood Volume	5μL in whole blood mode 150μL in pre-diluted mode
	Sample Capacity	20 Tubes
	Sample Loading Method	Continuous automatic sample loading
	Mixer	No, but probe mixing samples
Reagent and other consumble	Column test quantity	3000T
	Reagent pack	600T(Reagent) 3000T(Column)
	Eluent	2
Operation and character information	Operation screen	10 inch Full color LCD display
	Data storage	5000
	Built-in Thermal Printer	Yes
Performance information	CV	<2%
	Test range	3.0%~18.0%
Package Information	Dimensions	378(L) ×380(W)×510(H)mm
	Weight	28kg

Product Composition

---

Main Parts

The analyzer consists of an auto sample injection module, a liquid chromatography separation module, a colorimetric detection and control module, a barcode scanning module, and a display printing module.

Reagents and Consumables

The analyzer is recommended to be used in conjunction with the Glycosylated Hemoglobin Test Reagent Kit (high performance liquid chromatography (HPLC method)) produced by our company, which includes the following components:

	Specification	Function
Eluent A	300T*2 (1000ml*2)	Adjusts the pH of the solution for the elution of glycosylated hemoglobin and non glycated hemoglobin.
Eluent B	300T*2 (250ml*2)
Eluent C(Variant Mode)	300T*2 (650ml*2)
Hemolysis Reagent	300T*2(2300ml*2) 100ml*1	Used to dissolve red blood cells and release hemoglobin.
Hemoglobin Filter	2um*1pc	Used to initially filter the sample after hemolysis.
Paper Rolls	57*Ф30*12pcs	Prints a report of the test results.
Chromatography Column(Optional)	3000T*1pc, 4.6x30mm, 5μm	Used for separation and elution of glycosylated hemoglobin and non glycated.

Labnovation Technologies, Inc. is an original manufacturer established in Shenzhen, China since 2001. We are dedicated in developing and manufacturing IVD instruments and reagents including HbA1c analyzer and reagents, rapid test reader & reagents, hematology reagents, clinical chemistry reagents, electrolyte reagents, wash solution and urine test reagents.


Labnovation products are developed in house, tested extensively in clinics and passed strict quality controls. All of our products are CE marked and approved by SFDA. In the past 15 years, our products have been exported to 110 different countries and used in 8000 hospitals worldwide. We provide both ready-to-use final products and bulk OEM reagents, including ready-to-use reagents, concentrated, and powder.

With an investment of 10% of our annual sales into R&D, we release new products every years. We win more and more domestic and international cooperation by company reputation and products quality while we actively take part in fairs like MEDICA,AACC, ARBA HEALTH and so on through which we are well-known by the companies in this field.
